Description

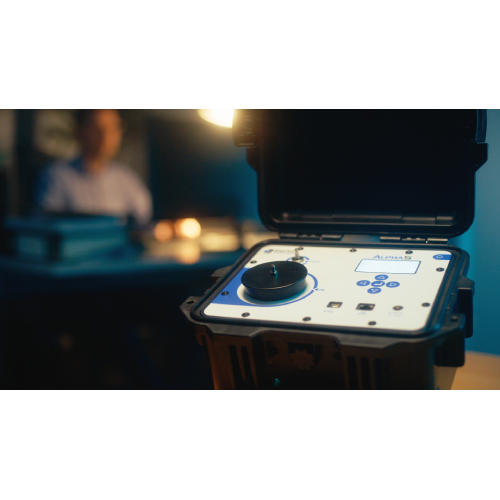

The Bertin Instruments AlphaS sets a high benchmark for field-ready, portable radon measurement. Housed in a heavy-duty, protective Pelicase, the instrument combines laboratory-grade accuracy with extreme field durability. Whether you are conducting compliance checks in workplace environments, residential radon screening, or rigorous assessments in industrial and mining operations, the AlphaS delivers rapid, reliable on-site results.
Equipped with an advanced ionization chamber, the device delivers an exceptional sensitivity of 1 cpm at 60 Bq/m³ (1.65 pCi/L), ensuring precise data even at background concentrations. Its expansive dynamic range reaches up to 200,000 Bq/m³ (5.4 nCi/L), making it just as capable during high-exposure mitigation testing as it is during low-level air quality surveys.
Additional information
- Rugged All-in-One Pelicase Enclosure: Built to withstand demanding industrial sites, mining sectors, and outdoor conditions without compromising internal electronics.
- Pulse Ionization Chamber Detector: Delivers rapid response times and consistent measurement integrity across long sampling cycles.
- Versatile Sampling Capabilities: Supports diffusion, flow, and grab sampling modes. The built-in pump simplifies direct soil gas ingress investigations and water measurement setups.
- Integrated Environmental Sensors: Simultaneously monitors temperature (T), barometric pressure (P), relative humidity (H), relocation/movement, and internal quality assurance parameters (QA).
- Flexible Communication & Web Server: Access and transfer data seamlessly via USB, LAN, or Wi-Fi. An integrated web server allows remote configuration and live monitoring directly through any standard browser without specialized software installs.
- Extended Battery Autonomy: Operates for more than 2.5 days continuously in diffusion mode on battery power.
- Homes & Workplaces: Continuous radon screening, baseline assessments, and indoor air quality compliance.
- Radon Mitigation & Construction: Pre- and post-mitigation diagnostic monitoring and soil gas depressurization verification.
- Waterworks & Municipal Facilities: Radon-in-water degassing analysis and headspace monitoring.
- Nuclear & NORM Industries: Uranium mining, radioactive waste processing, oil & gas facilities, and heavy industrial site surveys.
- Regulatory Compliance & Research: Standardized environmental testing and field dosimetry.
| Parameter | Specification |
|---|---|
| Detector Type | Ionization chamber |
| Sensitivity | 1 cpm at 60 Bq/m³ (1.65 pCi/L) |
| Measuring Range | 2 to 200,000 Bq/m³ (0.027 pCi/L to 5.4 nCi/L) |
| Measurement Modes | Diffusion, Flow, or Sampling (integrated pump module) |
| Multi-Parameter Sensors | Temperature (T), Pressure (P), Relative Humidity (H), Relocation, QA |
| Display | High-contrast backlit graphic display |
| Connectivity | USB, LAN, Wi-Fi, Embedded Web Server |
| Battery Life / Autonomy | > 2.5 days (diffusion mode) |
| Dimensions & Weight | 300 × 249 × 196 mm, < 5.7 kg |
| Enclosure | Ultra-tough heavy-duty Pelicase |
- Soil Gas Probe: For direct radon exhalation and sub-slab soil concentration profiling.
- AquaKIT: Specialized bubbling/degassing kit for precise radon-in-water concentration analysis.
SciWise Solutions Inc. is an authorized Canadian provider for Bertin radiation detection instruments. We supply local technical support, product training, calibration assistance, and tailored solutions to ensure your team complies with Canadian radiation safety and Health Canada guidelines.
