The HS-BEX monitors are multitasking equipment designed for the detection and measurement of radiation BETA and GAMMA on the hands and feet of potentially exposed personnel through a fully automatic operation.

The system can be configured to have 3, 4, 6 or 7 detectors depending on the application and budget. An equipment that complies with the highest quality standards, designed and assembled in Spain.

The post HS-BEX – Beta gamma hand feet monitor appeared first on SciWise Solutions Inc..

]]>

Detectors

  • Customized number of detectors up to 7 detectors for beta/gamma detection
  • Customized detector size for each customer and application: 30×15 cm, 15×15 cm, etc.
  • Typical efficiency per detector >20% (Cl-36), >9% (Tc99), >25% (Co-60 gamma)

Power Requirements

  • 220 VAC, 60 Hz or 110 VAC 50 Hz

Features

  • 1 10” touch screen for information and equipment control
  • Automatic dynamic measurement time calculation
  • Sensors for person detection
  • Audible and visual alarms
  • The 7th detector can be used as a frisker

Software

  • Automatic registration of all event, backgrounds, measurements, alarms, operation failures, etc.
  • Digital adjustment of the detectors (no any mechanical intervention is required)
  • Industrial PC with the latest OS Windows version
  • Calibration, verification and configuration modules
  • Software HS-RAD, that can be customized in any language
  • Voice module for customized voice messages
  • Remote operation can be included (TCP/IP)
  • USB connection for downloading all the data to an external device
  • Detection Limit calculation according to ISO 11929

Download Brochure

The post HS-BEX – Beta gamma hand feet monitor appeared first on SciWise Solutions Inc..

]]> HS-ABOMO – Alpha beta gamma portal for personnel monitoring https://www.sciwise.ca/product/hs-abomo-alpha-beta-gamma-portal-for-personnel-monitoring/ Wed, 07 Feb 2024 19:45:36 +0000 https://www.sciwise.ca/?post_type=product&p=7159 Multitasking two-step device

The HS-ABOMO unit is a multitasking two-step device designed for the detection and measurement of radioactive contamination, ALPHA, BETA and GAMMA, on potentially exposed personnel.

It has been specifically designed for controlled areas. It includes up to 31 detectors, which work autonomously and independently, allowing to perform simultaneous measurements with different alarm levels.

The user can identify exactly in a different channel the beta cps and gamma cps since the detectors are different for each type of radiation. Its operation is fully automated. The equipment has sensors that detect when a person enters the portal, interrupting the background acquisition and initiating automatically a thorough examination of the subject.

The post HS-ABOMO – Alpha beta gamma portal for personnel monitoring appeared first on SciWise Solutions Inc..

]]>

Detectors

  • Customized number of detectors up to 26 detectors for alpha/beta detection
  • Additional 5 gamma detectors can be included
  • Customized detector size for each customer and application: 30×15 cm, 50×40 cm, etc.
  • Typical efficiency per detector >12% Am241, >20% (Cl-36), >9% (Tc99), >25% (Co-60 gamma)

Power Requirements

  • 220 VAC, 60 Hz or 110 VAC 50 Hz

Features

  • 1 10” touch screen for information and equipment control
  • Automatic dynamic measurement time calculation
  • Sensors for person detection
  • Automatic barrier system
  • Automatic adjustable head detector
  • Audible and visual alarms
  • “Light” version with only 80×80 cm of are required for installation

Shielding

  • 5 cm of lead shielding (adjustable).

Software

  • Automatic registration of all event, backgrounds, measurements, alarms, operation failures, etc.
  • Digital adjustment of the detectors (no any mechanical intervention is required)
  • Industrial PC with the latest OS Windows version
  • Calibration, verification and configuration modules
  • Software HS-RAD, that can be customized in any language
  • Voice module for customized voice messages
  • Remote operation can be included (TCP/IP)
  • USB connection for downloading all the data to an external device
  • Detection Limit calculation according to ISO 11929

Download Brochure

The post HS-ABOMO – Alpha beta gamma portal for personnel monitoring appeared first on SciWise Solutions Inc..

]]> HS-BOMO – Beta gamma portal for personnel monitoring https://www.sciwise.ca/product/hs-bomo-beta-gamma-portal-for-personnel-monitoring/ Wed, 17 Jan 2024 20:47:03 +0000 https://www.sciwise.ca/?post_type=product&p=7142 Multitasking two-step device

The HS-BOMO unit is a multitasking two-step device designed for the detection and measurement of radioactive contamination, BETA and GAMMA, on potentially exposed personnel.

It has been specifically designed for controlled areas. It includes up to 31 detectors, which work autonomously and independently, allowing to perform simultaneous measurements with different alarm levels.

The user can identify exactly in a different channel the beta cps and gamma cps since the detectors are different for each type of radiation. Its operation is fully automated. The equipment has sensors that detect when a person enters the portal, interrupting the background acquisition and initiating automatically a thorough examination of the subject.

The post HS-BOMO – Beta gamma portal for personnel monitoring appeared first on SciWise Solutions Inc..

]]>

Detectors

  • Customized number of detectors up to 26 detectors for beta or alpha/beta detection
  • Additional 5 gamma detectors can be included
  • Customized detector size for each customer and application: 30×15 cm, 50×40 cm, etc.
  • Beta and gamma radiation can be measured in two different channels or together in one single channel
  • Typical efficiency per detector >20% (Cl-36), >9% (Tc99), >25% (Co-60 gamma)

Power Requirements

  • 110 VAC 50 Hz

Features

  • 1 10” touch screen for information and equipment control
  • Automatic dynamic measurement time calculation
  • Sensors for person detection
  • Automatic barrier system
  • Automatic adjustable head detector
  • Audible and visual alarms
  • “Light” version with only 80×80 cm of are required for installation

Shielding

  • 5 cm of lead shielding (adjustable).

Software

  • Automatic registration of all event, backgrounds, measurements, alarms, operation failures, etc.
  • Digital adjustment of the detectors (no any mechanical intervention is required)
  • Industrial PC with the latest OS Windows version
  • Calibration, verification and configuration modules
  • Software HS-RAD, that can be customized in any language
  • Voice module for customized voice messages
  • Remote operation can be included (TCP/IP)
  • USB connection for downloading all the data to an external device
  • Detection Limit calculation according to ISO 11929

Download Brochure

The post HS-BOMO – Beta gamma portal for personnel monitoring appeared first on SciWise Solutions Inc..

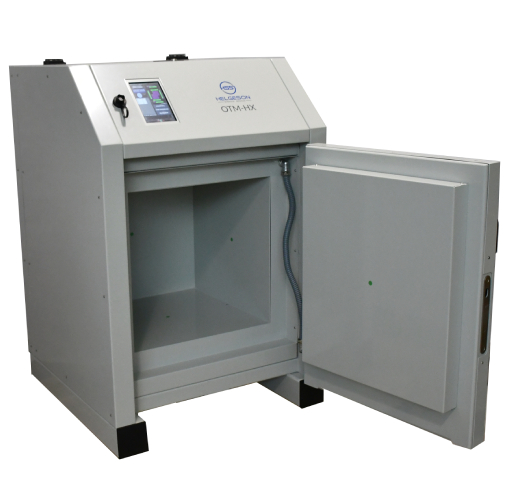

]]> OTM-HX – Object And Tool Monitors For Objects Monitoring https://www.sciwise.ca/product/otm-hx-object-and-tool-monitors-for-objects-monitoring/ Mon, 15 Jan 2024 17:30:49 +0000 https://www.sciwise.ca/?post_type=product&p=7116 Measurement Of Gamma Radiation

The HS-OTM has been designed for the detection and measurement of gamma radiation on potentially exposed tools and objects.

The size of the chambers and number of detectors can be customized in order to fit small objects up to drums and big bags.

The post OTM-HX – Object And Tool Monitors For Objects Monitoring appeared first on SciWise Solutions Inc..

]]>

Detectors

Power Requirements

  • 220 VAC, 60 Hz or 110 VAC 50 Hz

Features

  • 1 10” touch screen for information and equipment control
  • Automatic dynamic measurement time calculation
  • Sensors for person detection
  • Automatic barrier system
  • Automatic adjustable head detector
  • Audible and visual alarms
  • User can customize the number of doors (0, 1 or 2)
  • Chamber volume can be customized to fit small objects up to drums and big bags

Shielding

  • Up to 10 cm of lead shielding (adjustable).

Software

  • Automatic registration of all event, backgrounds, measurements, alarms, operation failures, etc.
  • Digital adjustment of the detectors (no any mechanical intervention is required)
  • Industrial PC with the latest OS Windows version
  • Calibration, verification and configuration modules
  • Software HS-RAD, that can be customized in any language
  • Voice module for customized voice messages
  • Remote operation can be included (TCP/IP)
  • USB connection for downloading all the data to an external device
  • Detection Limit calculation according to ISO 11929

Download Brochure

The post OTM-HX – Object And Tool Monitors For Objects Monitoring appeared first on SciWise Solutions Inc..

]]> Engineering & Design Services https://www.sciwise.ca/product/engineering-design-services/ Tue, 22 Aug 2023 13:53:56 +0000 https://www.sciwise.ca/?post_type=product&p=6838 The post Engineering & Design Services appeared first on SciWise Solutions Inc..

]]>

Structural Integrity Analyses

  • Structural Integrity Analyses
    • Lifting and rigging, load testing in accordance with ASME B30.20
    • Finite Elements Analysis (FEA) conducted by third party Professional Engineer (PE)
    • Determine/verify factor of safety according to BTH-1 standard
    • Seismic analysis based on plant requirements
      and accelerations

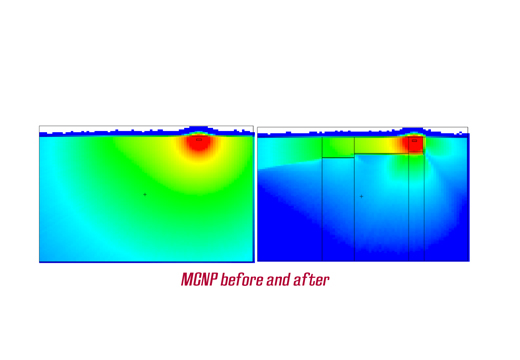

Monte-Carlo N Particle (MCNP)

Engineering Services

  • Monte-Carlo N Particle (MCNP)
    • Simulate the effects of sources on the general area and produce expected doses
    • Validate shielding designs against current
      configuration
  • Laser Scanning, RadVision3D

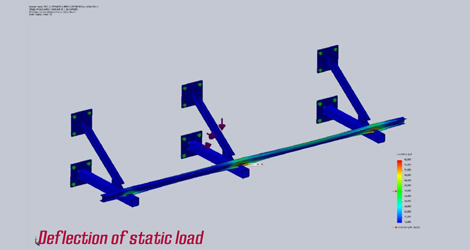

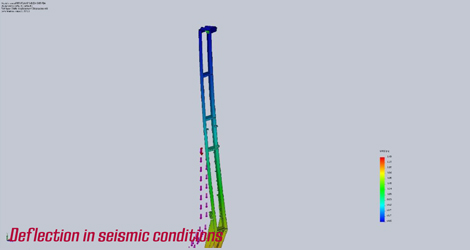

Finite Elements Analysis

FEA reports include:

  • Stress plots
  • Factor of Safety
  • Deflection

The post Engineering & Design Services appeared first on SciWise Solutions Inc..

]]> Lead Walls and Panels https://www.sciwise.ca/product/lead-walls-and-panels/ Tue, 22 Aug 2023 13:51:09 +0000 https://www.sciwise.ca/?post_type=product&p=6837 The post Lead Walls and Panels appeared first on SciWise Solutions Inc..

]]>

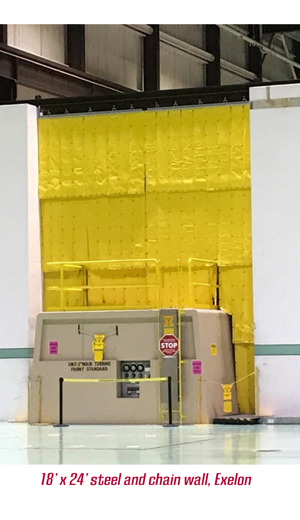

Lead walls and panels are used for general area shielding and to create low dose waiting areas. NPO’s custom shield booths also are used to reduce background and count times with existing PCM, frisker, and hand/foot monitors. These booth structures, comprised of lead sheets encased in steel, provide the most economical and best attenuating upgrade of your existing monitors.

The post Lead Walls and Panels appeared first on SciWise Solutions Inc..

]]> Containers And Casks https://www.sciwise.ca/product/containers-and-casks/ Tue, 22 Aug 2023 13:44:45 +0000 https://www.sciwise.ca/?post_type=product&p=6834 The post Containers And Casks appeared first on SciWise Solutions Inc..

]]>

Mobile Shielded Container

Mobile Shielded Container

  • Duke – McGuire, 2018
  • 0.5” thick steel for walls, doors, and lid
  • Caster and push handles allows the 2800 lb container to be easily moved and positioned
  • Multiple side doors and a sliding lid
  • One hasp locks all doors in place
  • Able to be rigged and lifted

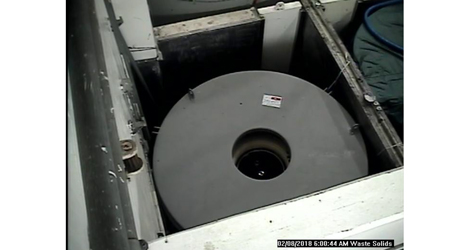

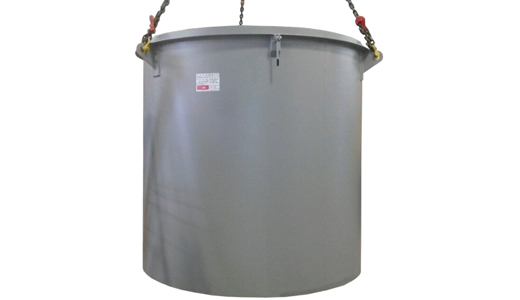

Shielded Waste Drum

Shielded Waste Drum

  • 93% Attenuation (1.75” Solid Lead, 0.5” Steel)
  • 78” inside diameter, 82” inside height
  • Hole in lid for waste disposal
  • Lockable lid – Drum can be lifted with lid attached
  • 22,300 lb total weight

Filter Cask

Filter Cask

  • Stainless steel cask filled on all sides with 3.5” of
    solid lead to provide a better than 99.9% dose
    reduction for Co-60
  • Stores water treatment system filter
  • Split lid allows for shielding on one half while filter
    is being worked on
  • Ports on top of the lid keep workers shielded while
    nozzles are attached
  • 11.5:1 factor of safety when lifted
  • 7,500 lb total weight

Form fitted Shielding

T-Flex® Shielding

  • Heavy metal and silicone polymer that remains flexible while providing shielding
  • Can be molded into a variety of shapes to best fit the application
  • Tungsten
    • Most dense T-Flex material
    • Best suited for custom shapes, pipes, and magnetic tiles
  • Bismuth
    • Best suited for blankets, tiles, and slabs
  • Iron, Neutron, Boron, Stainless Steel
    • Other materials for specific applications

The post Containers And Casks appeared first on SciWise Solutions Inc..

]]> Racks https://www.sciwise.ca/product/racks/ Tue, 22 Aug 2023 13:40:17 +0000 https://www.sciwise.ca/?post_type=product&p=6831 The post Racks appeared first on SciWise Solutions Inc..

]]>

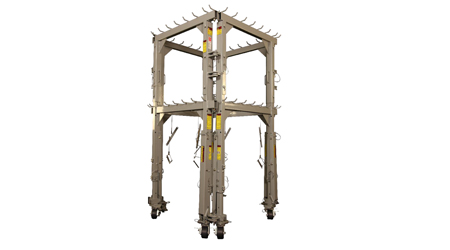

Serpentine Racks

Serpentine Racks

  • Steel lead wool and T-Flex blanket rack
  • 3 feet wide, height adjustable from 6 feet to 8 feet
  • Collapsible legs create a 2:1 height to base ratio
  • Heavy duty swivel casters makes moving and positioning racks easy
  • Link racks together via pin connections
    • Create continuous walls of shielding of any length
    • Lock racks at 90° angles
  • Maximum capacity: 2880 lb
    • (6) layers of 15 lb/ft 2 shielding blankets
  • Unloaded Weight: 180 lb

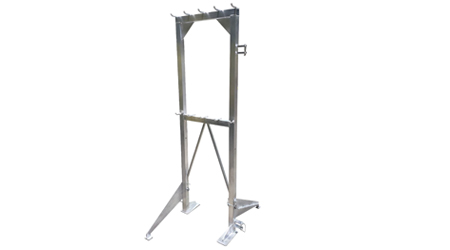

Light Duty Racks

Light Duty Racks

  • 2’ wide x 6’ tall
  • Aluminum construction
  • Two tiered.
  • Holds (2) layers of 15 lb/ft2 shield blankets
  • Link racks together via pin connections
    • Create continuous walls of shielding of any length
    • Create angles
  • Blankets overlap and hook spacing allows blankets to
    bridge from one rack to another without gaps
  • Legs fold up
  • Easy to carry grip
  • Approximate weight: 35 lb

Custom Blanket Racks

Custom Blanket Racks

The post Racks appeared first on SciWise Solutions Inc..

]]> Lead Blankets https://www.sciwise.ca/product/lead-blankets/ Tue, 22 Aug 2023 13:37:06 +0000 https://www.sciwise.ca/?post_type=product&p=6830 The post Lead Blankets appeared first on SciWise Solutions Inc..

]]>

Lead Wool Blankets

  • Standard 10 and 15 lb/ft2
  • Length, width, shape, and weight can be customized to fit need
  • PVC or high temperature covers
  • Handles on all blankets 60 lb and under
  • Larger grommets for easier installation on hooks
  • Key information printed on cover with custom printing available

The post Lead Blankets appeared first on SciWise Solutions Inc..

]]> T-FLEX® https://www.sciwise.ca/product/t-flex/ Tue, 22 Aug 2023 13:28:39 +0000 https://www.sciwise.ca/?post_type=product&p=6827 The post T-FLEX® appeared first on SciWise Solutions Inc..

]]>

Ribbon Wraps

T-Flex® Shielding

Ribbon Wrap

Highly flexible strips. These ribbons can be spiral wrapped around components for a quick “hot spot” solution. Standard length is 8 feet and material can be easily cut in the field using typical cutting tools

Pipe Shielding

T-Flex® Shielding

Pipe Shielding

Ideal for small bore pipe applications. Engineered to be within weight limitations while maximizing attenuation. Cinch straps are include for each section of pipe shielding.

Floor Shielding

T-Flex® Shielding

Floor Shielding

Designed to provide economical and ergonomic solutions for shielding sources below. Each tile combines the attenuation properties of T-Flex® with the durability of a work mat. They also can be cut for in field adjustments. The floor shielding features a non-slip diamond tread surface

  • Dry Cask Platforms
  • Scorpion Platforms
  • Refuel Bridge
  • RCP Platform

Magnetic Shielding

T-Flex® Shielding

Magnetic Shielding

Magnetic tiles cling to any carbon steel surface allowing for a variety of applications. Each tiles installs easily and quickly and is removed by pulling a D-ring. They are available with magnets strong enough for use under RX head.

Blankets

T-Flex® Shielding

Blankets

An alternative to lead blankets, similar attenuation characteristics without the lead hazard. T-Flex Blankets can be cut in the field using a utility knife, but can stand up to normal wear and tear. Increased flexibility over a standard lead blanket allows for wrapping shielding closer to the source and easier handling characteristics.

Laboratory

T-Flex® Shielding

Laboratory

The non-toxic T-Flex® Beaker and Vial Shields provide a convenient method of reducing extremity dose when using radioactive solutions in laboratory environments. Transport and store beakers and vials either on an individual basis or all together in a rolling case.

Custom

T-Flex® Shielding

Custom

The silicone base for T-Flex allows for complex and custom shapes. Custom molded shapes allows the shielding to get nearest to the source as possible and be more effective at reducing the overall dose.

Dry Cask Shielding

T-Flex® Shielding

Dry Cask Shielding

T-Flex® dry cask composite shielding is designed to tackle both neutron and gamma sources associated with dry cask operations. T-Flex is an excellent gamma and neutron attenuator and this shielding is supplemented by an additional neutron attenuator such a borated polyethylene.

Gamma Attenuation

Gamma Attenuation

Gamma Attenuation by type of material

The physics of gamma radiation shielding and the attenuating impact of available shielding materials can be distilled down to “mass-in-the-path”. For gamma energies approaching Cobalt-60 (1.25 MeV), achieving 50% attenuation or half-value-layer (hvl) will have very similar weights per unit area. What will vary is the thickness of the material necessary to achieve the desired attenuation.

Reasons To Choose T-FLEX

Highly Flexible

Infinitely Customizable

Corrosion Resistant

Lead (Pb) Free

High suction rate

Types Of T-Flex®

The post T-FLEX® appeared first on SciWise Solutions Inc..

]]>
